Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: ZL250A11
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 30 to 40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Set/Month
Input Wire Range: |
2.6 - 3.0 MM |
Output Wire Range: |
0.4 - 1.2 MM |
Line Speed (Max): |
1800 M/MIN |
Number Of Dies: |
21 |
Main Motor Power: |
55kW-4P AC Motor |
Take-up Volume: |
Max 200 KG |
Take-up Bobbin: |
500 - 600 MM |
Power Supply: |
380V AC, 50Hz, 3-phase |
Input Wire Range: |
2.6 - 3.0 MM |
Output Wire Range: |
0.4 - 1.2 MM |
Line Speed (Max): |
1800 M/MIN |
Number Of Dies: |
21 |
Main Motor Power: |
55kW-4P AC Motor |
Take-up Volume: |
Max 200 KG |
Take-up Bobbin: |
500 - 600 MM |
Power Supply: |
380V AC, 50Hz, 3-phase |

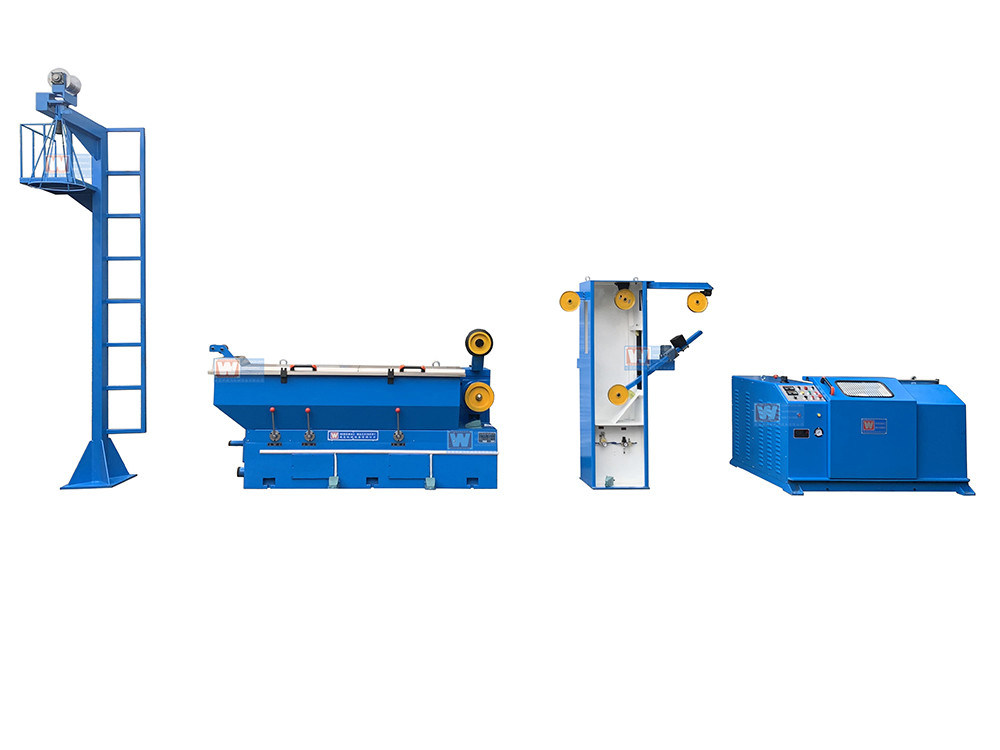

High Speed Bull Block Wet Wire Drawing Machine For Copper Wire
Introduction
1. The transmission system adopts A class strong narrow V-belt combined hard tooth surface reducer or swing ring reducer; The lower coil is powered by the lower coil and the lower coil diameter is adjustable; AC variable frequency speed regulation, the wire drawing machine has stable and reliable transmission, low noise, large torque, durability, high cost performance, low energy consumption, energy conservation and environmental protection. The machine is easy to operate, safe and reliable, and can save more than 30% energy.
2. The take-up reel is heavy; Forced air cooling of drum; Pneumatic pressure roller;
3. High degree of automation, simultaneous wire drawing and take-up, up to 2 tons of take-up reel, convenient and reliable wire unloading, simple operation, high production efficiency, safety and reliability.
Technical Parameters
| Machine Specs | ZL250A11 | ||||||
| Incoming line | 2.6 mm - 3.0 mm | ||||||
| Finished wire range | 0.4 mm - 1.2 mm | ||||||
| Die Number | 21 | ||||||
| Max machine speed | 1800 m/min | ||||||
| Type | Lubrication by full immersion | ||||||
| Capstan | 250 mm | ||||||
| Mechanical elongation | 1st-20th: 18.4%, 21st: 15% | ||||||
| Take up motor power | 11kw-4P AC motor | ||||||
| Total power | 30kw to 65kw | ||||||
| Machine size | L13000 x W5000 x H4000 mm | ||||||
| Machine weight | 8000 kgs | ||||||
Detailed Picture
Related Products
Download Center
Intermediate RBD Wire Drawing With Single Spool Ta...
Note: Please click above link to download our detailed machine technical specifications.
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Advantages
A. Our technicians / engineers have been working in this industry for more than 20 years. Most of other factories, 5 to 10 years. Our technicians and engineers are our shareholders, who view quality as life.
B. We are a manufacturer for the complete lines, which is easy for us to control the quality.
C. Our company is very very responsible, no customers made complaints because of quality and service. Our competitors have received a lot of lawsuits. If you don't believe it, we can show you. We also welcome anyone to check us any time. Gold will glow if it is.
D. Our company has our own copper wire drawing machine with annealing & tinning factory, we used our drawing machines to produce copper wires. Please contact us freely if you want to visit our copper wire drawing machine factory. We can show you the quality of the products, which is produced by our drawing machines.
E. Our company is located in Dongguan, next to Shenzhen, Guangzhou, Hong Kong. In this area, many enterprises from Japan, Taiwan, Hong Kong came to Dongguan for running factories. The quality concept is much stronger than other provinces. Please ask any Chinese if you don't believe it.
F. The main components are famous brands, SFK bearing, Yaskawa inverter, Habasit belt, Siemens motor, Schneider electrical switches, etc, which ensure the machines running stable.
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
Video
