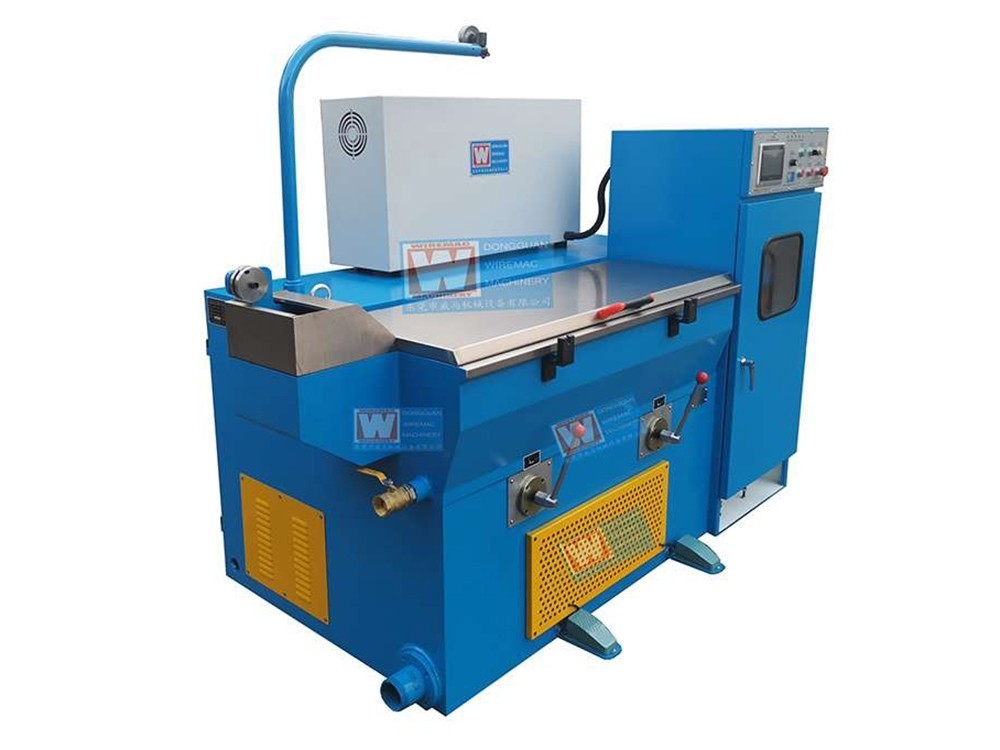

Medium 380V AC Copper Wire Drawing Machine Outlet 0.17-0.7MM

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 20DHAC01

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 25-40 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 150 Set/Month

Get Best Price
Product Details
High Light:

380V Copper Wire Drawing Machine

,

0.17MM Copper Wire Drawing Machine

,

0.7MM Medium Wire Drawing Machine

Inlet Wire:
0.8 - 1.6 MM
Outlet Wire:
0.17 - 0.7 MM
Speed:
1600 M/MIN
Main Power:
15.5 KW - 4P (AC)
Take Up Power:
4 KW - 4P
Take Up Capacity:
80 KGS
Required Voltage:
380V AC 50Hz
Machine Dimension:
3120L X 1100W X 1900H MM
Machine Weight:
3000 KG
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Elongation Rate:
17.5% + 10%
Spool Specs:
300 Or 400 MM
Inlet Wire:
0.8 - 1.6 MM
Outlet Wire:
0.17 - 0.7 MM
Speed:
1600 M/MIN
Main Power:
15.5 KW - 4P (AC)
Take Up Power:
4 KW - 4P
Take Up Capacity:
80 KGS
Required Voltage:
380V AC 50Hz
Machine Dimension:
3120L X 1100W X 1900H MM
Machine Weight:
3000 KG
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Elongation Rate:
17.5% + 10%
Spool Specs:
300 Or 400 MM
Product Description

0.17 to 0.7 mm Spray Lubrication Type Medium Fine Copper Wire Drawing Machine



Main features



► Body formation of A3 steel plate welding heat treatment to relieve internal stress and boring by a precision boring lathe and features non-deformability, high accuracy and stability.



► It is made of 42CrMo steel and heat treated to alleviate internal hard force and provide good comprehensive mechanical properties. The surface is finely ground to ensure the concentricity and accuracy of the core.



► The drawing motor has a capacity of 18.5kW AC and the take-up motor 5.5kW AC. A frequency conversion speed regulator with stepless speed regulation is used to control the power. The present line speed can be displayed automatically on the line meter.



► Slip type continuous wire drawing with three horizontal shafts.



Technical Parameters



Machine Specs 20DHAC01
Max inlet wire range 0.8 - 1.6 mm
Outlet diameter wire range 0.17 - 0.7 mm
Production speed 1500 m/min
Main motor power 18.5 kw
Take up motor 4 kw
Dies 22
Wire drawing lubrication Spray type
Outer diameter of dies Φ25mm x 8mm (thickness)
Take-up control Double frequency conversion automatic tension synchronous control
Brake type Electromagnetic brake
Take up capacity 80 KG
Spool size 300 / 400 mm
Power supply 380V, 50HZ
Machine dimension 3120L x 1100W x 1900H (mm)
Weight 3000 kg



Download Center

22 Dies Middle-Fine Wire Drawing Machine.pdf

Note: Please click above link to download our detailed machine technical specifications.



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Machine Photos



Medium 380V AC Copper Wire Drawing Machine Outlet 0.17-0.7MM 0Medium 380V AC Copper Wire Drawing Machine Outlet 0.17-0.7MM 1Medium 380V AC Copper Wire Drawing Machine Outlet 0.17-0.7MM 2



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Medium 380V AC Copper Wire Drawing Machine Outlet 0.17-0.7MM 3



Our Workshop



Medium 380V AC Copper Wire Drawing Machine Outlet 0.17-0.7MM 4Medium 380V AC Copper Wire Drawing Machine Outlet 0.17-0.7MM 5Medium 380V AC Copper Wire Drawing Machine Outlet 0.17-0.7MM 6



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
