DONGGUAN WIREMAC MACHINERY EQPT. CO., LTD. andy@wiremac.com 86-0769-82706004
Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 24DHA55
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Plywood Case
Delivery Time: 20-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Month
Incoming Copper Wire: |
Φ 0.60MM To 1.20MM |
Outcoming Copper Wire: |
Φ 0.08MM To 0.32MM |
Die Quantity: |
24D |
Running Speed: |
2200 M/min Max |
Function: |
Automatic Stop & Brake |
Drive: |
Flat Belt Drive |
Machine Dimension: |
L2800 X W1500 X H1650 MM |
Weight: |
2200 KGS |
Incoming Copper Wire: |
Φ 0.60MM To 1.20MM |
Outcoming Copper Wire: |
Φ 0.08MM To 0.32MM |
Die Quantity: |
24D |
Running Speed: |
2200 M/min Max |
Function: |
Automatic Stop & Brake |
Drive: |
Flat Belt Drive |
Machine Dimension: |
L2800 X W1500 X H1650 MM |
Weight: |
2200 KGS |

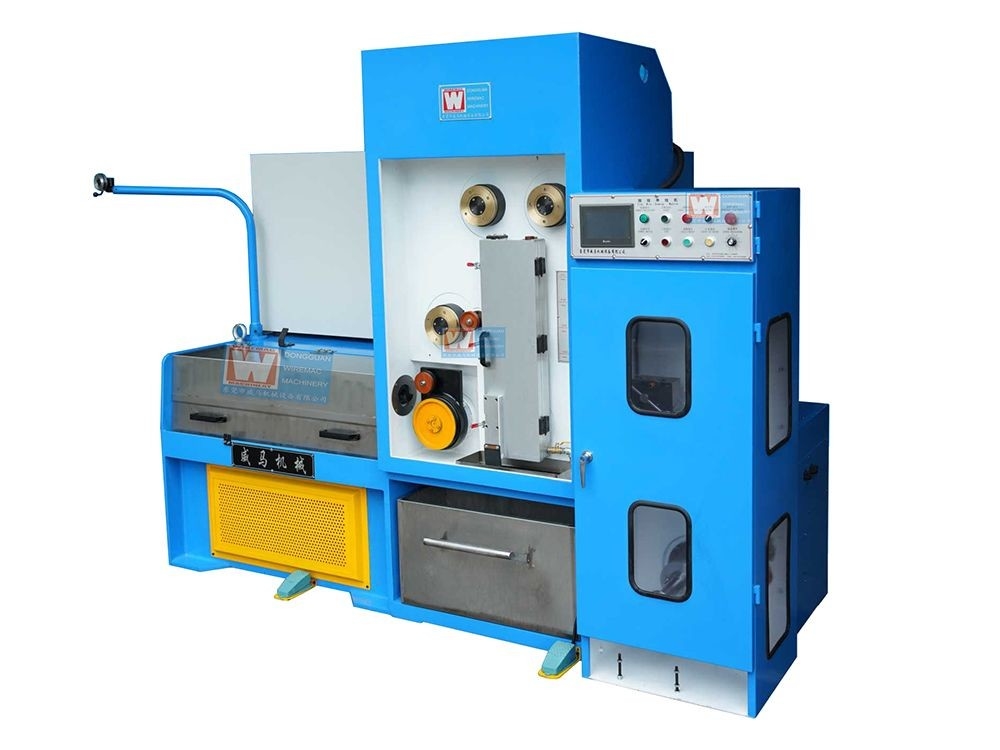

24D Fine Wire Drawing Machine With Continuous Annealing Tension Control
Introduction
The utility model relates to an extrusion die for a copper wire drawing machine, which comprises a die body. The die is specifically divided into an outer die and an inner die. The die hole runs through the axis of the inner die. The inner surface of the cylindrical cavity of the outer die matches the surface of the round table of the inner die. The outer die is provided with a plurality of oil injection holes along the tangent direction of the lubrication area at the inlet of the inner die.
The plurality of oil injection holes are connected with an annular oil circuit and an injection hole to form a complete oil circuit, An oil circuit interface is arranged at the part where the injection hole extends out of the surface of the outer mold. The utility model is provided with a plurality of circular oil injection holes to ensure the smooth injection of lubricating oil into the wire drawing die along different tangent directions, and the utility model can inject lubricating oil into the wire drawing die at the same time The outer mold is matched by the conical surface, which has strong self centering and reduces the mold adjustment time when replacing the inner mold.
Technical Parameters
| Item | Specs | ||||||
| Input wire diameter | Φ 0.6 - 1.2 mm | ||||||
| Output wire diameter | Φ 0.08 - 0.32 mm | ||||||
| Dimension of dies | Φ25mm x 8 - 13mm thickness | ||||||
| Inverter brand | Yaskawa, Japan | ||||||
| Drawing lubrication type | Spray type | ||||||
| Machine control |
Tension control |
||||||
| Power control | 15kW - 4P, AC motor | ||||||
| Take up spool dimension | Φ 300mm | ||||||
| Mechanical elongation | 1st - 23rd dies: 13% + 24th die: 8.7% | ||||||
| Annealing transformer power | 15 KVA | ||||||
| Annealing control mode | 509 tributary of the controller | ||||||
| Annealing voltage | 70V DC | ||||||
| Motor power of take-up | AC motor, 4kw - 4P or 5.5kw | ||||||
| Power supply | 380V - 480V, 50Hz / 60Hz, 3 Phase | ||||||
