Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: B1250PLC1
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 25-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 Set/Month
Single Wire Diameter: |
1 - 6 MM |
Stranding Section Area: |
7 - 200 MM2 |
Take Up Bobbin: |
1250 MM |
Lay Of Length: |
20.11 - 200.53 MM |
Machine Speed: |
500 RPM |
Driving Motor: |
25 HP AC |
Machine Weight: |
8000 KG |
Machine Dimension: |
L4400 X W2200 X H2600 MM |
Single Wire Diameter: |
1 - 6 MM |
Stranding Section Area: |
7 - 200 MM2 |
Take Up Bobbin: |
1250 MM |
Lay Of Length: |
20.11 - 200.53 MM |
Machine Speed: |
500 RPM |
Driving Motor: |
25 HP AC |
Machine Weight: |
8000 KG |
Machine Dimension: |
L4400 X W2200 X H2600 MM |

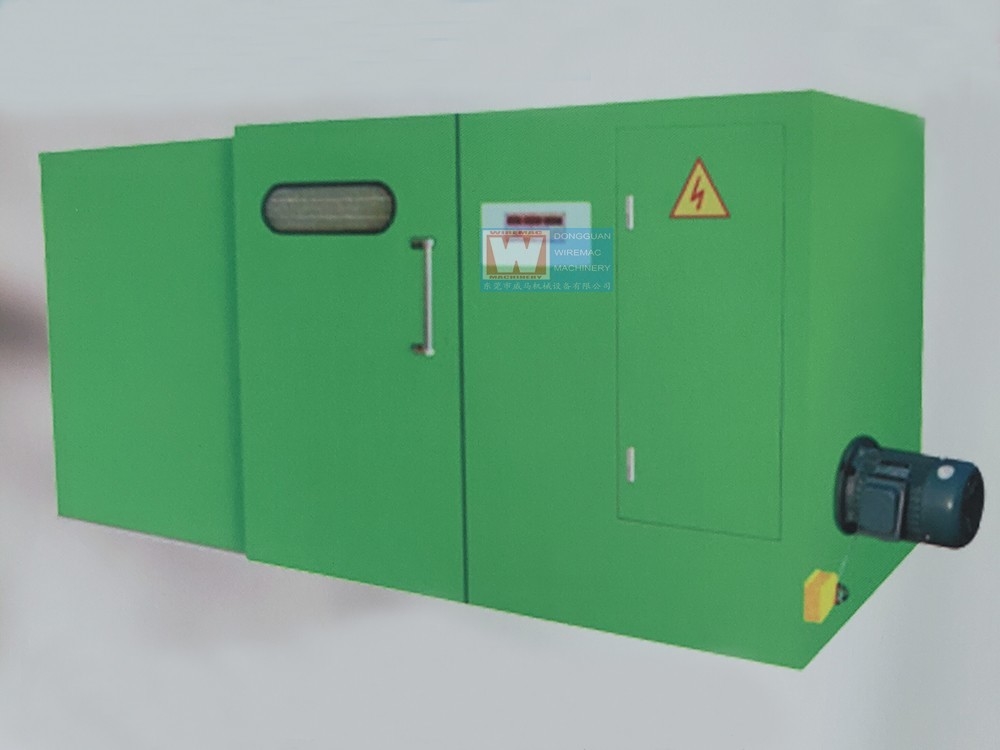

Electronic Wire PVC Cable Stranding Machine Bunching Machine
Introduction
Principle of high-speed wire bunching machine and copper wire stranding machine: the copper wire passing through the stranding bow of the machine is spirally wound together by the joint action of the circular motion of the stranding bow and the forward movement of the machine; The stranded copper wire is the place where the maximum amount of a single copper wire is used. After the copper wires of different specifications and numbers are twisted together according to a certain arrangement order and stranding distance, they will become a conductor with larger diameter. The stranded conductor is much softer than a single copper wire of the same diameter, and the bending performance of the electric wire is also better.
The single line occurs once every fixed distance along the direction of the strand, and the fixed distance is the pitch of the strand. Another definition of stranding distance: refers to the vertical distance of the stranded wire body forward after every 360 degrees of rotation along the stranding axis, in mm.
Technical Parameters
Item | Specification | ||||||
Spindle height |
950 mm |
||||||
Stranding direction | Right or Left, according to customer's requirement | ||||||
Traverse unit | Rolling ring drive unit, winding pitch and breadth are adjustable | ||||||
Braking system | Auto braking using the internal & external short line of the braker | ||||||
Reel elevator | Manual | ||||||
Coating | According to customer's requirement | ||||||
Noise level | About 80 d.b | ||||||
Application | Suitable for twisting multi-strand copper wire, cca wire, tin-plated wire etc. |
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
