Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 24DHBA03
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 25-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 Set/Month
Inlet Wire Size: |
0.80 MM - 1.20 MM |
Outlet Wire Size: |
0.08 MM - 0.32 MM |
Speed: |
2500 M/MIN Max |
Die No.: |
24 Sets |
Die Size: |
Φ25mm X 8 - 13mm (thickness) |
Take Up Reel: |
300 MM Max |
Power Consumption: |
8 - 18 KW |
Warranty: |
1 Year |
Inlet Wire Size: |
0.80 MM - 1.20 MM |
Outlet Wire Size: |
0.08 MM - 0.32 MM |
Speed: |
2500 M/MIN Max |
Die No.: |
24 Sets |
Die Size: |
Φ25mm X 8 - 13mm (thickness) |
Take Up Reel: |
300 MM Max |
Power Consumption: |
8 - 18 KW |
Warranty: |
1 Year |
24D Spray Type Aluminum Wire Drawing Machine With Lifetime Warranty
Introduction
Operating procedures of wire drawing machine
1. Before starting the machine, first check whether the rotation of the machine is normal, whether various start switches are flexible and whether the alarm device is reliable;
2. Check whether the specification of the bus meets the process requirements, whether the pay off frame is flexible and whether the drawing oil (lubricating oil) is normal;
3. After the above inspection, arrange the eye mold (equipped with eye mold) according to the production specifications, pass the bus from front to back through the mold, and pass through the tower wheel circle (2,3) in turn according to the tightness of the mold;
4. Thread the wire, then align the eruption oil port with the die, turn on the wire drawing oil switch, cover the protective cover, and start the machine;
5. When opening the protective cover, handle it gently and do not use too much force to prevent the protective cover from slipping and crushing fingers;
6. After the machine is started for 2 or 3 minutes, first watch the cable arrangement and adjust the cable arrangement in a suitable place. There shall be no phenomenon of height on both sides or ground on both sides;
7. When looking at the wire arrangement, do not put your head into the door of the coiling box to look at the wire arrangement, so as to avoid breaking the wire, stabbing your eyes with your head, and do not touch the rotating part of the machine with your hand;
8. Wear labor protection articles at work, do not wear slippers at work, and do not smoke in the workshop at work to avoid fire;
9. After winding off the shaft, first check whether the product meets the process requirements. When winding off the shaft, handle it with care. Do not bruise or bruise the surface of the line, let alone use dirty gloves or touch the surface of the line to avoid oxidation;
10. When taking the empty iron shaft, use a forklift or forklift to pull the iron shaft, and do not roll to avoid collision
Damage the iron shaft edge to prevent the iron shaft from deformation; When empty the iron shaft, it shall not be placed too high to prevent slipping and hurting the foot;
11. During working hours, pay more attention to whether the machine operates normally, whether the abnormal noise is too loud, and whether the machine runs overload;
12. The precautions for maintenance and repair shall be implemented according to the instructions of the machine;
13. Keep the ground and machine clean, and make shift handover records.
Technical Parameters
| Item | Specs | ||||||
| Input wire diameter | 0.80 - 1.20 mm | ||||||
| Output wire diameter | 0.08 - 0.32 mm | ||||||
| Capstan diameter | 206 mm | ||||||
| Die number | 24 pcs (only) | ||||||
| Wire drawing lubrication | Spray type | ||||||
| Main motor power | 15KW-4P AC motor | ||||||
| Take up control | Double frequency conversion automatic tension control | ||||||
| Mechanical elongation rate | From the 1st to 23th,15%; By the 24th die, 8.7% | ||||||
| Bobbin size | 300 mm, max | ||||||
| Power supply | 380V to 480V, 50Hz / 60Hz | ||||||
| Machine size | L2800 x W1500 x H1650 (mm) | ||||||
| Machine weight | 2200 kgs | ||||||
Download Center
Fine Wire Drawing Machine 0.08 - 0.35 mm.pdf
Note: Please click above link to download our detailed machine technical specifications.
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.

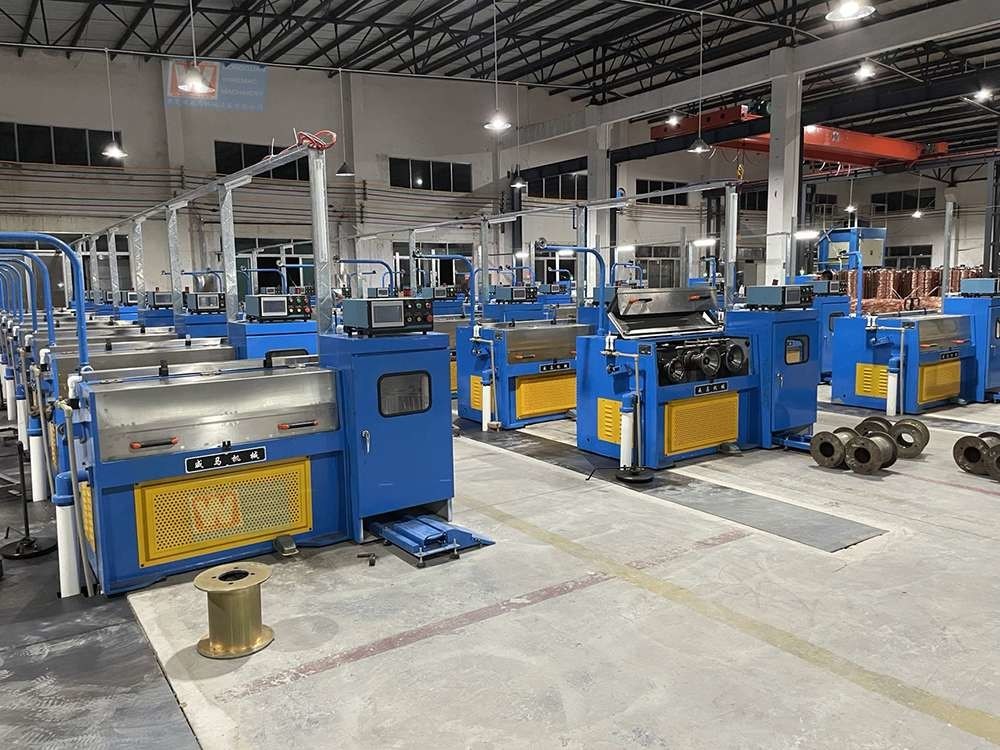

Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
