SGS Medium Aluminum Wire Drawing Machine 3 Phase 1800m/Min 21 Dies

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: ZL250A01

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30 to 42 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 Set/Month

Get Best Price
Product Details
High Light:

SGS Aluminum Wire Drawing Machine

,

3Phase Aluminum Wire Drawing Machine

,

1800m/Min Medium Wire Drawing Machine

Inlet Wire:
2.6 - 4.0 MM
Outlet Wire:
0.4 - 1.8 MM
Max Dies:
21 Dies
Line Speed:
Max 1800 M/MIN
Die Dimension:
Φ25MM × 8 - 13MM
Mechanical Elongation:
18.4% +15%
Capstan Size:
250 MM
Main Motor Power:
55KW-4P AC Motor
Power Consumption:
30 - 65 K
Dimension:
11000L X 5000W X 4000H MM
Weight:
5000 KG
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Inlet Wire:
2.6 - 4.0 MM
Outlet Wire:
0.4 - 1.8 MM
Max Dies:
21 Dies
Line Speed:
Max 1800 M/MIN
Die Dimension:
Φ25MM × 8 - 13MM
Mechanical Elongation:
18.4% +15%
Capstan Size:
250 MM
Main Motor Power:
55KW-4P AC Motor
Power Consumption:
30 - 65 K
Dimension:
11000L X 5000W X 4000H MM
Weight:
5000 KG
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Product Description

0.4mm to 1.8mm Medium Model Aluminium Wire Drawing Machine Aluminum Cable Making Machine



Main Features



1. Pay off rack

The setting out is a setting out rack with two working positions. When replacing the wire fence, only swing the setting out rack to complete the setting out process.



2. Wire drawing host

The transmission of the wire drawing host adopts gear transmission, which has high transmission efficiency, low noise and long service life. The lubrication of the gear adopts independent oil pump for forced spray lubrication. The wire drawing wheel adopts a combined tower wheel sprayed with carborundum on the surface, with high hardness and wear resistance.



3. Tension device

Use the air cylinder to control the tension. When adjusting the tension, you only need to adjust the air pressure to realize the adjustment and control of the tension, which is convenient and fast.



4. Take-up machine

The take-up mode is single reel, and the maximum take-up reel size is 630mm. The shaftless take-up mode is adopted, and the upper and lower reels are fast and safe.



Technical Parameters



Machine Specs ZL250A01
Inlet wire range 2.6 - 4.0 mm
Output wire range 0.4 - 1.8 mm
No. of Dies 21 Dies
Running speed 1800 m/min
Main power 55 kw 4P AC
Wire drawing lubrication Lubrication by full immersion
Elongation rate 1st to 20th, 18.4%,By the 21st die, 15%
Power consumption 30 - 65 kW
Spool size 500 mm, 630 mm
Machine dimension L11000 x W5000 x H4000 (mm)
Power supply 380 - 400V, 50/60Hz, 3 Phase
Take-up capacity Max 200 kg
Machine weight 5000 kgs



Download Center



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Product Photo

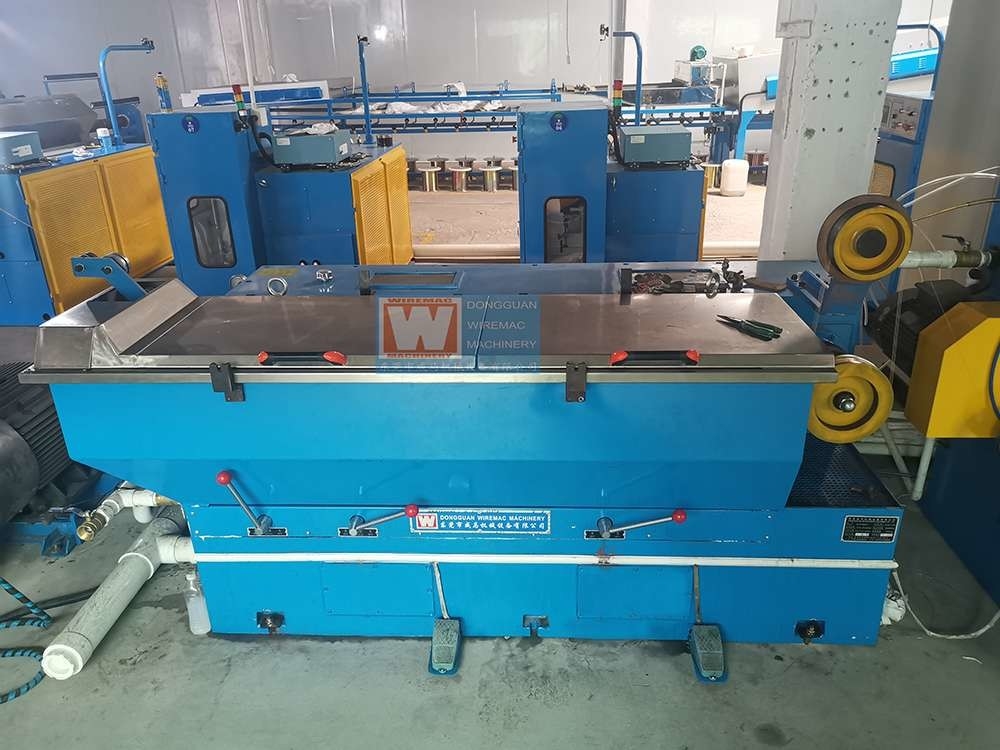

SGS Medium Aluminum Wire Drawing Machine 3 Phase 1800m/Min 21 Dies 0

SGS Medium Aluminum Wire Drawing Machine 3 Phase 1800m/Min 21 Dies 1



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



SGS Medium Aluminum Wire Drawing Machine 3 Phase 1800m/Min 21 Dies 2



Our Workshop



SGS Medium Aluminum Wire Drawing Machine 3 Phase 1800m/Min 21 Dies 3SGS Medium Aluminum Wire Drawing Machine 3 Phase 1800m/Min 21 Dies 4SGS Medium Aluminum Wire Drawing Machine 3 Phase 1800m/Min 21 Dies 5



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
