DONGGUAN WIREMAC MACHINERY EQPT. CO., LTD. andy@wiremac.com 86-0769-82706004
Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 24DHBA01
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 25-35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 Set/Month
Input Wire Size: |
0.8 MM - 1.2 MM |
Output Wire Size: |
0.08 MM - 0.32 MM |
Wire Speed: |
2500 M/MIN |
Die Quantity: |
24 Sets |
Main Power: |
15 KW |
Power Consumption: |
8 KW - 18 KW |
Take Up Reel: |
300 MM Max |
Take Up Capacity: |
50 KGS |
Warranty: |
1 Year |
Color: |
Blue Or Customized |
Input Wire Size: |
0.8 MM - 1.2 MM |
Output Wire Size: |
0.08 MM - 0.32 MM |
Wire Speed: |
2500 M/MIN |
Die Quantity: |
24 Sets |
Main Power: |
15 KW |
Power Consumption: |
8 KW - 18 KW |
Take Up Reel: |
300 MM Max |
Take Up Capacity: |
50 KGS |
Warranty: |
1 Year |
Color: |
Blue Or Customized |
0.08mm to 0.32mm Small Model Fine Aluminum Wire Drawing Machine Wire Making Machine
Main features
The aluminum wire drawing machine comprises a motor, a base and a paying off frame, which is characterized in that the drum for taking up the wire is rotatably arranged on the base.
The drum is driven by the motor, the base is provided with a water tank and a mold in the water tank, the water tank is on one side of the drum, the water tank and the mold are provided with through holes for the aluminum wire to pass through, and the support can be movably arranged on the outer wall of the drum.
A roller for supporting the pull wire is arranged above the support. One end of the pull wire is connected with the support and the other end is connected with the rotating shaft of the lifting motor.
The aluminum wire of the utility model is placed on the pay off frame, one end passes through the water tank and the through hole on the die and is tied on the support, the aluminum wire becomes a thin aluminum wire after passing through the die, the support rotates with the drum, the thin aluminum wire is wound on the support, and the pull wire and take-up are carried out at the same time.
The utility model has the advantages of simple structure and low cost, and can be used for small-scale production with low machining accuracy requirements.
Technical Parameters
| Machine Specs | 24DHBA01 | ||||||
| Inlet wire diameter | 0.8 to 1.2 mm | ||||||
| Outlet wire diameter | 0.08 to 0.32 mm | ||||||
| Line speed | 2500 m/min | ||||||
| Die No. | 24 Sets | ||||||
| Main motor power | 15kW-4P AC motor | ||||||
| Drawing lubrication method | Spray type | ||||||
| Brake | Electromagnetic brake | ||||||
| Mechanical elongation rate | By the dies from the 1st to 23th,13%; By the 24th die, 8.7% | ||||||
| Spool dimension | 300 - 400 mm | ||||||
| Power supply | 380V - 480V, 50Hz / 60Hz | ||||||
| Machine dimension | 2800L x 1500W x 1650H (mm) | ||||||
| Machine weight | 2200 kgs | ||||||
Download Center
Fine Wire Drawing Machine 0.08 - 0.35 mm.pdf
Note: Please click above link to download our detailed machine technical specifications.
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf

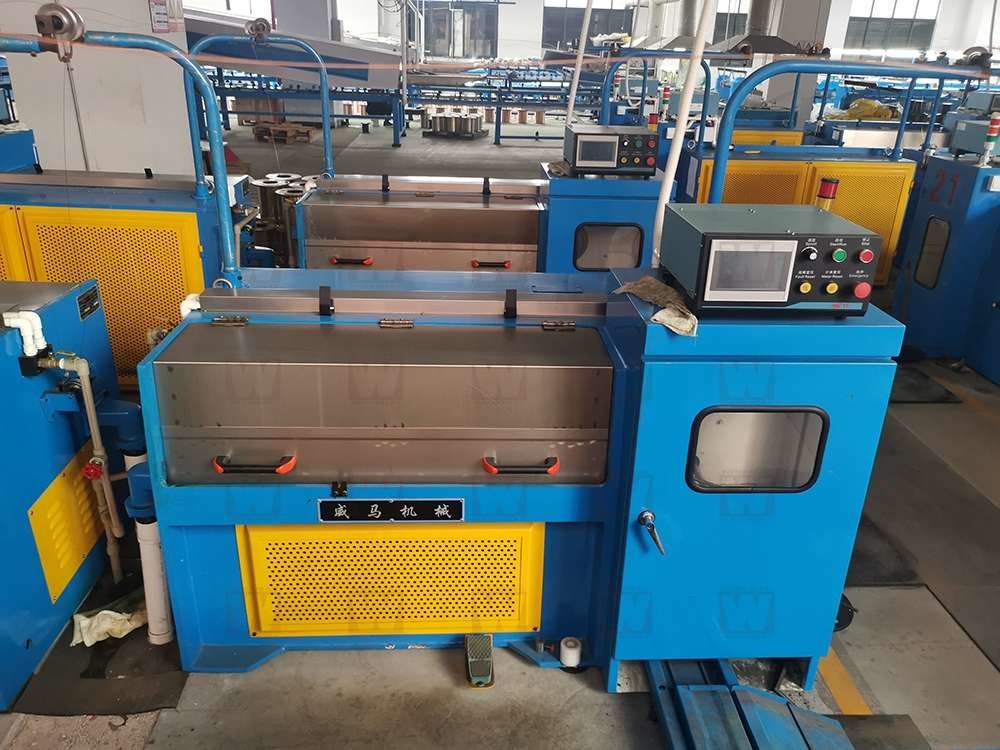

Machine Photos
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
