2500M/Min Aluminum Wire Drawing Machine Intelligent 0.08mm To 0.32mm

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: 24DHB01

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 20-25 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Set/Month

Get Best Price
Product Details
High Light:

2500M/Min Aluminum Wire Drawing Machine

,

8KW Aluminum Wire Drawing Machine

,

Intelligent SS Wire Drawing Machine

Inlet Diameter Range:
0.40 - 1.20 MM
Outlet Diameter Range:
0.08 - 0.32 MM
Wire Speed:
2500 M/MIN
Die Quantity:
24
Total Power:
8 - 18 KW
Motor Brand:
Siemens
Capstan Material:
Stainless Steel
Capstan:
206 Mm
Color:
Blue, Yellow Or Others
Warranty Period:
1 Year
Inlet Diameter Range:
0.40 - 1.20 MM
Outlet Diameter Range:
0.08 - 0.32 MM
Wire Speed:
2500 M/MIN
Die Quantity:
24
Total Power:
8 - 18 KW
Motor Brand:
Siemens
Capstan Material:
Stainless Steel
Capstan:
206 Mm
Color:
Blue, Yellow Or Others
Warranty Period:
1 Year
Product Description

2500M/Min Aluminum Wire Drawing Machine Intelligent 0.08mm To 0.32mm

Introduction

Pay-off: the pay off of metal wire does not require too high precision for the whole process of wire drawing machine. For most wire drawing machines, the pay off operation is realized by driving the pay off frame by frequency converter, but some wire drawing machines with double frequency conversion control are even directly sent to the wire drawing machine through the wire tension drafting of the wire drawing process.

Wire drawing: wire drawing is the most important working part of wire drawing machine. Different metal materials, different wire varieties and requirements, wire drawing process are very different.

Take-up: the working speed of the take-up process determines the production efficiency of the whole wire drawing machine, and it is also the most difficult part of the whole system to control. In the winding part, the common control technologies are synchronous control and tension control to realize the winding of metal products.

Technical Parameters



Spec Name 24DHB01
Input wire range 0.40 mm to 1.20 mm
Output wire range 0.08 mm to 0.32 mm
Max. wire speed 2500 meter / min
Number of dies 24 unit
Dimension of dies 25 x 8 - 13 mm
Machine lubrication Spray type
Mechanical elongation rate 15% + 8.7%
Capstan dimension 206 mm
Spool specs 300 x 215 x 270 or 300 x 215 x 290
Spool range Max. 300 mm
Power supply 3 phase, 380 to 480 V, 50/60 HZ
Machine dimension L2800 x W1500 x H1650 mm
Machine weight 2200 kgs



Download Center


Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



2500M/Min Aluminum Wire Drawing Machine Intelligent 0.08mm To 0.32mm 0

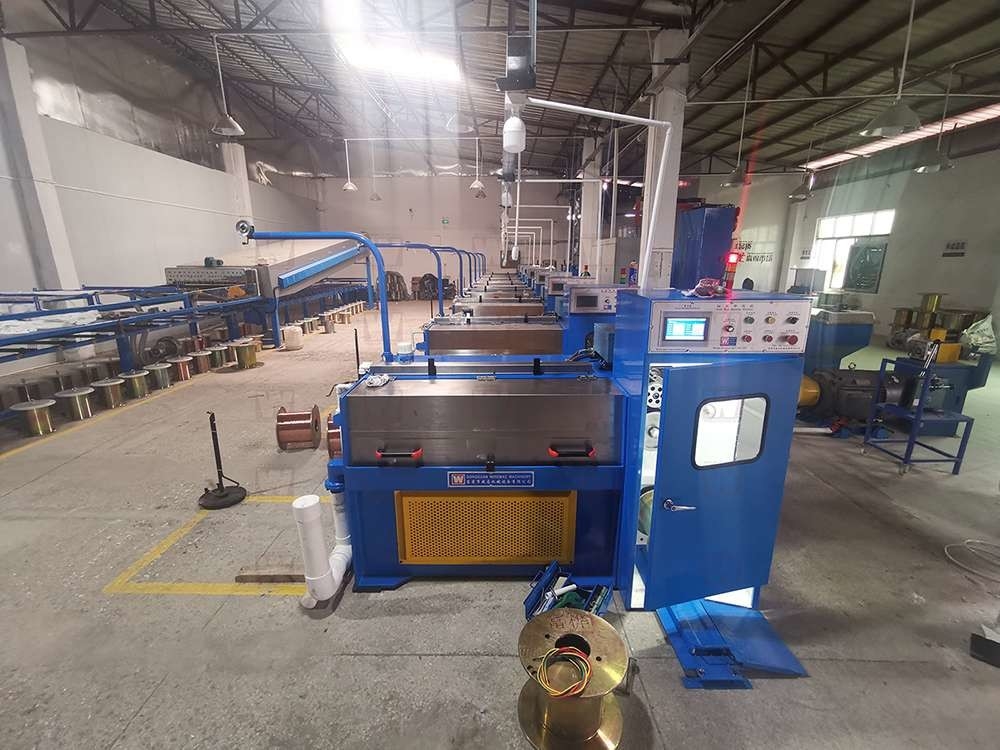

Our Workshop



2500M/Min Aluminum Wire Drawing Machine Intelligent 0.08mm To 0.32mm 12500M/Min Aluminum Wire Drawing Machine Intelligent 0.08mm To 0.32mm 22500M/Min Aluminum Wire Drawing Machine Intelligent 0.08mm To 0.32mm 3



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
