Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: QDX60A10
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Plywood Case
Delivery Time: 25-55 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Month
Inlet Wire Range: |
0.08 - 0.32 MM |
Outlet Wire Range: |
0.08 - 0.32 MM |
Equipment Speed: |
300 M/min |
Annealing Number: |
60 Wires |
Maximum Temperature: |
700 ℃ |
Spool Size: |
According To User Requirement |
Equipment Size: |
L21800 X W1500 X H1800 MM |
Machine Weight: |
3500 KGS |
Inlet Wire Range: |
0.08 - 0.32 MM |
Outlet Wire Range: |
0.08 - 0.32 MM |
Equipment Speed: |
300 M/min |
Annealing Number: |
60 Wires |
Maximum Temperature: |
700 ℃ |
Spool Size: |
According To User Requirement |
Equipment Size: |
L21800 X W1500 X H1800 MM |
Machine Weight: |
3500 KGS |
24 Hours Working Annealing Equipment For Bare Copper Wire
Introduction
A metal heat treatment process in which metal is slowly heated to a certain temperature, maintained for a sufficient time, and then cooled at an appropriate rate (usually slow cooling, sometimes controlled cooling).
The purpose is to soften the materials or workpieces processed by casting, forging, rolling, welding or cutting, improve the plasticity and toughness, homogenize the chemical composition, remove the residual stress, or obtain the expected physical properties.
Annealing processes vary with different purposes, such as recrystallization annealing, isothermal annealing, homogenization annealing, spheroidization annealing, stress removal annealing, recrystallization annealing, stabilization annealing, magnetic field annealing and so on.
(1) Electrical control components: Imported electronic control components, with high reliability, in order to ensure the stable operation of the machine.
(2) Power supply voltage: 380V AC, 50 Hz, 3 phase
(3) Electrical control: Taiwan Clipsal intelligent temperature controller, temperature control, temperature stability can be controlled error of plus or minus 1 degree.
Technical Parameters
| Item | Specs | ||||||
| Inlet wire diameter | 0.08 to 0.20 MM | ||||||
| Outlet wire diameter | 0.08 to 0.20 MM | ||||||
| Machine speed | Max 300 m/min | ||||||
| Number of annealing wire | 40 PCS | ||||||
| Max. temperature | 700 ℃ | ||||||
| Spool specs | Φ 300 mm | ||||||
| Annealing tube length | 7500 mm | ||||||
| Number of heating zone | 4 zones | ||||||
| Take-up power | 400 W / 500 W | ||||||
| Maximum Take-up weight | Max 25 kg | ||||||
| Take-up method | Take-torque motor | ||||||
| Row-line | Double or single row line | ||||||
| Power supply | AC 380V-480V, 50Hz/60Hz | ||||||
| Machine dimension | 21800 x 1500W x 1800H mm | ||||||
| Machine weight | 3500 kg | ||||||

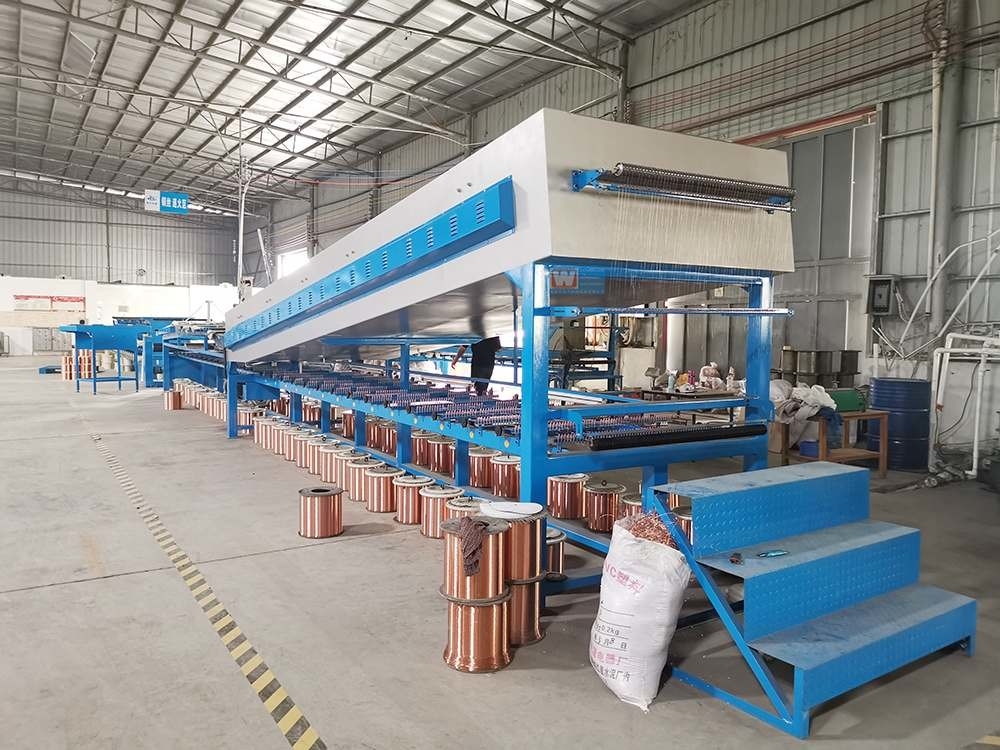

Machine Photo
Download Center
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
