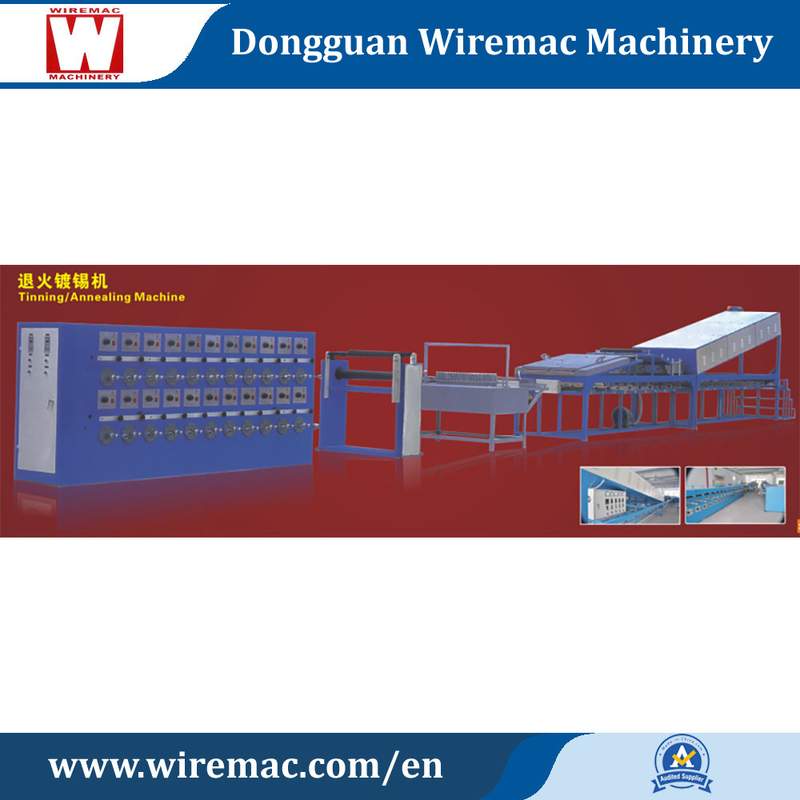

AC 380V 50HZ Copper Wire Tinning Machine Stainless Steel 40 Annealing

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: QDX40-6000

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30-50 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Month

Get Best Price
Product Details
High Light:

380V Copper Wire Tinning Machine

,

50HZ Copper Wire Tinning Machine

,

40 Wire Annealing Machine

Inlet Wire:
0.05 - 0.12 MM
Outlet Wire:
0.05 - 0.12 MM
Production Speed:
300 M/min
Total Power:
45 KW (AC)
Annealing Quantity:
40 Wires
Maximum Temperature:
700 ℃
Spool Size:
300 MM
Equipment Dimension:
21800 X 1500W X 1800H MM
Machine Weight:
3500 KG
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Inlet Wire:
0.05 - 0.12 MM
Outlet Wire:
0.05 - 0.12 MM
Production Speed:
300 M/min
Total Power:
45 KW (AC)
Annealing Quantity:
40 Wires
Maximum Temperature:
700 ℃
Spool Size:
300 MM
Equipment Dimension:
21800 X 1500W X 1800H MM
Machine Weight:
3500 KG
Warranty:
1 Year
Quality:
Europe, US Standard
Color:
Blue Or Customized
Product Description

0.05 to 0.12 mm Tinning Equipment 40 Wires Annealing Machine



Main features



► Annealing tubes made of stainless steel (316L) material high temperature levels, and strong corrosion resistance.



► Cooling water tank: use of 304 stainless steel rust-proof, corrosion resistance, equipped with thermostat, make the temperature constant.



► Dry: use high pressure air to force the water surface drying wire.



► Electrical control: Taiwan Clipsal intelligent temperature controller, temperature control, temperature stability can be controlled error of plus or minus 1 degree.



Technical Parameters



Machine Specs QDX40-6000
Inlet wire range 0.05 to 0.12 MM
Outlet wire range 0.05 to 0.12 MM
Running speed Max 300 m/min
Number annealing tube 40 PCS
Maximum temperature 700 ℃
Spool specs Φ 300 mm
Annealing tube length 6000 mm
Number of heating zone 4
Take-up motor power 400 W or 500 W
Maximum Take-up weight Max 15 kg
Take-up control mode Voltage Regulator
Heating Type Electric heating tube
Power supply AC 380V, 50HZ
Machine dimension 21800 x 1500W x 1800H mm
Weight 3500 kg



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



AC 380V 50HZ Copper Wire Tinning Machine Stainless Steel 40 Annealing 0



Our Workshop



AC 380V 50HZ Copper Wire Tinning Machine Stainless Steel 40 Annealing 1AC 380V 50HZ Copper Wire Tinning Machine Stainless Steel 40 Annealing 2AC 380V 50HZ Copper Wire Tinning Machine Stainless Steel 40 Annealing 3



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
