Multimode 500W Straight Line Wire Drawing Machine 40 Head 700 Degree

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: QDX40-7500

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Plywood Case

Delivery Time: 25-55 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Month

Get Best Price
Product Details
High Light:

Multimode Straight Line Wire Drawing Machine

,

500W Straight Line Wire Drawing Machine

,

40Head Straight Wire Drawing Machine

Inlet Wire Range:
0.08 - 0.20 MM
Outlet Wire Range:
0.08 - 0.20 MM
Equipment Speed:
300 M/min
Annealing Number:
40 Wires
Maximum Temperature:
700 ℃
Spool Size:
According To User Requirement
Equipment Size:
L21800 X W1500 X H1800 MM
Machine Weight:
3500 KGS
Inlet Wire Range:
0.08 - 0.20 MM
Outlet Wire Range:
0.08 - 0.20 MM
Equipment Speed:
300 M/min
Annealing Number:
40 Wires
Maximum Temperature:
700 ℃
Spool Size:
According To User Requirement
Equipment Size:
L21800 X W1500 X H1800 MM
Machine Weight:
3500 KGS
Product Description

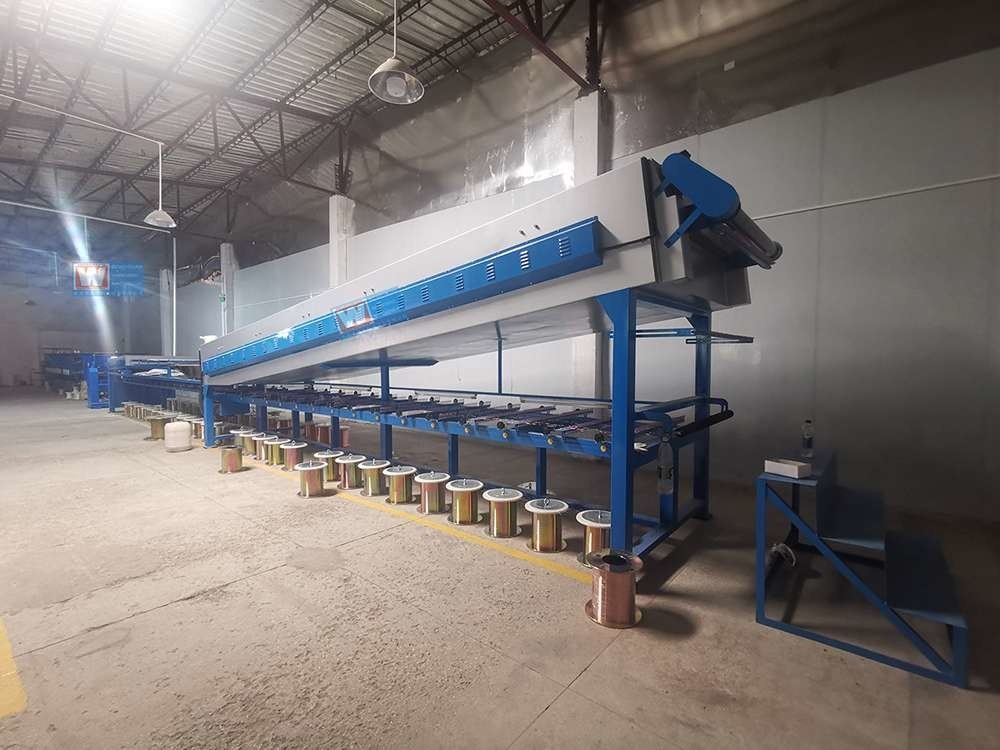

40 Head Pipeline Annealing Equipment For Copper Wire



Introduction



A metal heat treatment process in which metal is slowly heated to a certain temperature, maintained for a sufficient time, and then cooled at an appropriate rate. Usually slow cooling, sometimes controlled cooling.



The purpose is to soften materials or workpieces that have been cast, forged, rolled, welded or cut, improve plasticity and toughness, homogenize chemical composition, remove residual stress, or obtain expected physical properties.



There are many kinds of fire processes with different purposes, such as recrystallization annealing, isothermal annealing, homogenization annealing, spheroidization annealing, stress removal annealing, recrystallization annealing, stabilization annealing, magnetic field annealing and so on.



Technical Parameters



Machine Specs QDX40-7500
Inlet wire diameter 0.08 to 0.20 MM
Outlet wire diameter 0.08 to 0.20 MM
Machine speed Max 300 m/min
Number of annealing wire 40 PCS
Max. temperature 700 ℃
Spool specs Φ 300 mm
Annealing tube length 7500 mm
Number of heating zone 4 zones
Take-up power 400 W / 500 W
Maximum Take-up weight Max 25 kg
Take-up method Take-torque motor
Row-line Double or single row line
Power supply AC 380V-480V, 50Hz/60Hz
Machine dimension 21800 x 1500W x 1800H mm
Machine weight 3500 kg



Download Center



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Multimode 500W Straight Line Wire Drawing Machine 40 Head 700 Degree 0



Our Workshop



Multimode 500W Straight Line Wire Drawing Machine 40 Head 700 Degree 1Multimode 500W Straight Line Wire Drawing Machine 40 Head 700 Degree 2Multimode 500W Straight Line Wire Drawing Machine 40 Head 700 Degree 3



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
