Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: QDX60A02
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Plywood Case
Delivery Time: 25-55 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Month
Inlet Wire Range: |
0.08 - 0.32 MM |
Outlet Wire Range: |
0.08 - 0.32 MM |
Equipment Speed: |
300 M/min |
Annealing Number: |
60 Wires |
Maximum Temperature: |
700 ℃ |
Spool Size: |
According To User Requirement |
Equipment Size: |
L21800 X W1500 X H1800 MM |
Machine Weight: |
3500 KGS |
Inlet Wire Range: |
0.08 - 0.32 MM |
Outlet Wire Range: |
0.08 - 0.32 MM |
Equipment Speed: |
300 M/min |
Annealing Number: |
60 Wires |
Maximum Temperature: |
700 ℃ |
Spool Size: |
According To User Requirement |
Equipment Size: |
L21800 X W1500 X H1800 MM |
Machine Weight: |
3500 KGS |

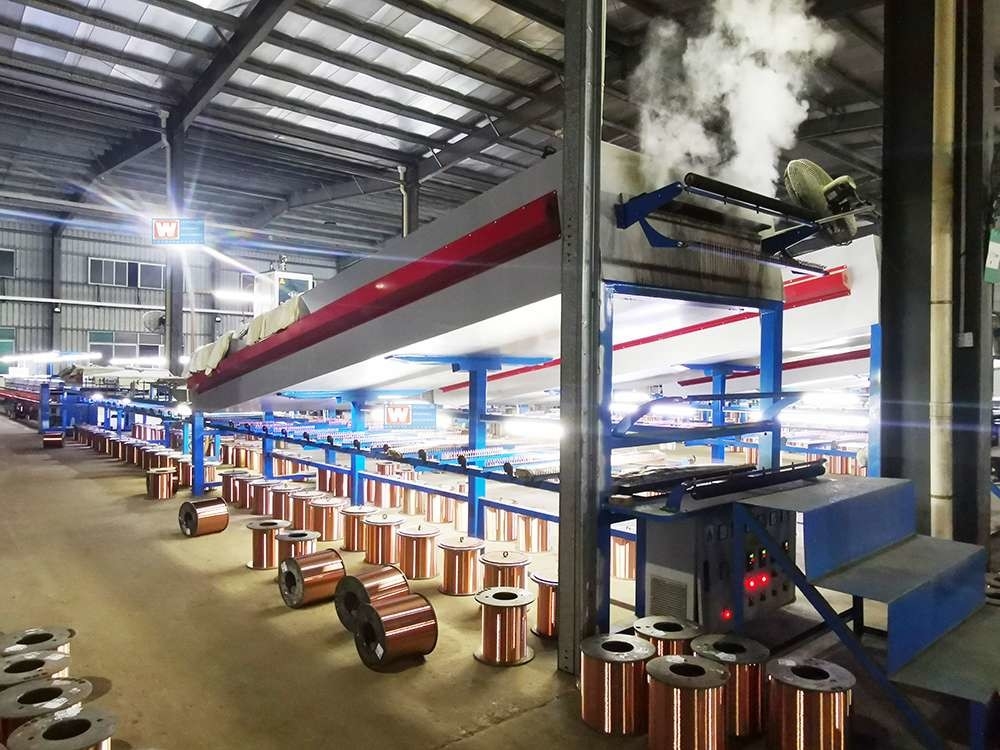

60 Head Copper Wire Annealing Machine 0.08 To 0.32mm
Introduction
Annealing process operation specification
1. Production scope
Tank annealing furnace is used for annealing copper single wire, and the wire diameter range is 0.08 ~ 0.32 mm.
2. Preparation before startup
2.1 Prepare measuring tools and tools for production, and check whether the calibration measuring instruments are accurate
2.2 Check whether the crane, vacuum pump, instrument, instrument and other production equipment are in good condition and normal, and check whether the heating element in the annealing furnace is damaged. If it is damaged, it shall be repaired in time
2.3 During annealing of copper single wire, the annealing steel tank shall be checked for air leakage. In case of air leakage, clean the sealing groove and sealing rubber ring.
3. Startup steps and operation points
3.1 Lift the inspected copper single wire with a lifting hook and slowly lift it into the annealing steel tank to prevent damaging the conductor
3.2 After filling the tank with copper single wire, cover the tank cover and tighten the tank cover bolts
3.3 Start the vacuum pump, connect the vacuum hose to the annealing steel tank valve, vacuum to make the vacuum pressure gauge close the valve when it does not reach the pressure required by the process, then close the vacuum pump, remove the hose, connect the carbon dioxide hose, open the valve and fill carbon dioxide to make the vacuum pressure gauge indicate the pressure required by the process. When inflating, open the low-pressure valve of the cylinder first, and then the high-pressure valve of the cylinder. When closing the gas, close the high-pressure valve first and then the low-pressure valve
3.4 Lift the gas filled annealing steel tank into the electric furnace, heat it according to the temperature required by the process, connect the tank cover cooling water pipe, open the water system, and check the furnace temperature and air pressure during the heating process. After heating up to the annealing temperature required by the process, the insulation must be continued, and the insulation time shall be implemented according to the process regulations
3.5 Lift the annealing steel tank out of the electric furnace and put it on the ground, let it cool in the air until it reaches the natural cooling time required by the process, and then put it into the water tank for cooling. Soak it according to the soaking time required by the process. After reaching the time, open the tank and take out the wire. The wire shall be handled carefully to prevent damaging the copper wire
3.5 When the gas pressure in the tank is found to rise gradually during annealing, it is necessary to take remedial measures instead of gradually increasing the gas pressure in the tank. If the air pressure rises more than 0.1MPa during heating, it must be deflated to 0.01Mpa. To prevent the steel tank from deformation due to excessive air pressure
3.6 The outgoing lines of each tank must be stacked at the designated position according to the product shape to prevent bumping, check the appearance quality, and notify the inspector to sample and inspect the mechanical and electrical properties of the copper wire. The products that have passed the acceptance must be hung with qualified labels, and records must be made carefully
Technical Parameters
| Item | Specs | ||||||
| Inlet wire diameter | 0.08 to 0.20 MM | ||||||
| Outlet wire diameter | 0.08 to 0.20 MM | ||||||
| Machine speed | Max 300 m/min | ||||||
| Number of annealing wire | 40 PCS | ||||||
| Max. temperature | 700 ℃ | ||||||
| Spool specs | Φ 300 mm | ||||||
| Annealing tube length | 7500 mm | ||||||
| Number of heating zone | 4 zones | ||||||
| Take-up power | 400 W / 500 W | ||||||
| Maximum Take-up weight | Max 25 kg | ||||||
| Take-up method | Take-torque motor | ||||||
| Row-line | Double or single row line | ||||||
| Power supply | AC 380V-480V, 50Hz/60Hz | ||||||
| Machine dimension | 21800 x 1500W x 1800H mm | ||||||
| Machine weight | 3500 kg | ||||||
Download Center
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
