DONGGUAN WIREMAC MACHINERY EQPT. CO., LTD. andy@wiremac.com 86-0769-82706004
Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: DL - 400/11
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Plywood Case
Delivery Time: 30-55 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Month
Inlet Wire: |
8.0 MM |
Outlet Wire Range: |
1.6 - 4.0 MM |
Blocks: |
11 |
Max Speed: |
20 M/S |
Spooling Size: |
PND500~PND630 |
Main Motor Power: |
132kW (AC) |
Required Voltage: |
380 - 480V AC 50/60 Hz |
Toal Power: |
180 KW (AC) |
Inlet Wire: |
8.0 MM |
Outlet Wire Range: |
1.6 - 4.0 MM |
Blocks: |
11 |
Max Speed: |
20 M/S |
Spooling Size: |
PND500~PND630 |
Main Motor Power: |
132kW (AC) |
Required Voltage: |
380 - 480V AC 50/60 Hz |
Toal Power: |
180 KW (AC) |

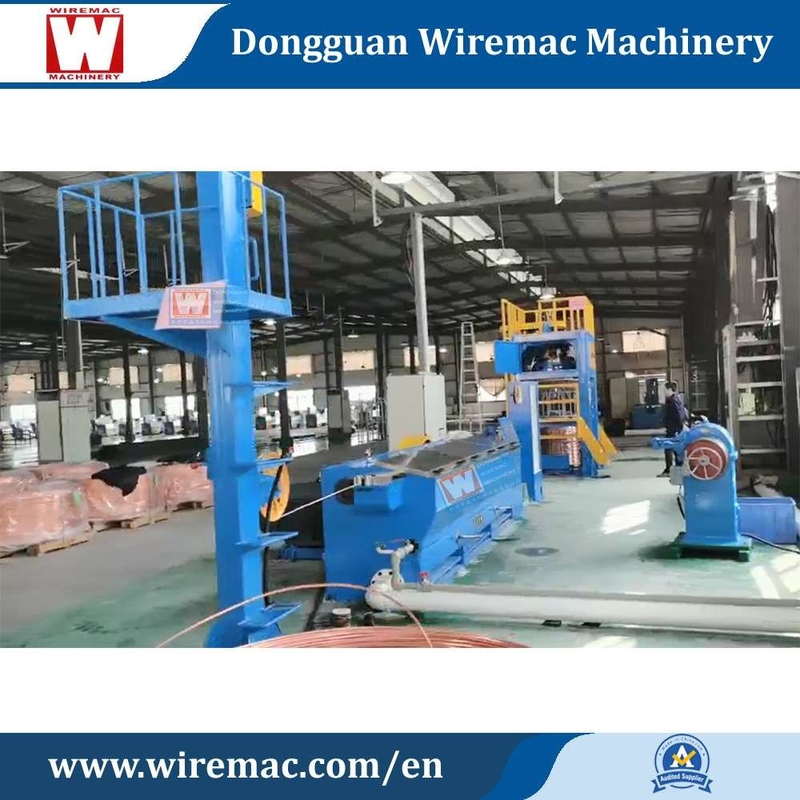

Large Size Copper Wire Rod Drawing Machine With Long Service Life
Introduction
In the production process, the rod material has irregular quality defects, which makes the monofilament broken by various unpredictable tensions in the drawing deformation. This situation rarely occurs when the rod material is good.
Solution: select different mold matching schemes according to different rod materials, and constantly explore in production. For example, when producing the copper rod produced by the up drawing method, 8 drawing machine dies are required to pull the 2.53mm single wire, while when producing the single wire with the same outer diameter, if the rolling rod is used, an additional bridge die shall be added when matching the die according to the requirements;
Before production, the copper rod to be produced shall be fully self inspected, the quality defects of the copper rod shall be found in time, and the corresponding countermeasures shall be found in time according to different conditions, or the wire drawing speed shall be reduced, or the defective parts in this section shall be removed.
During production, constantly observe whether the annealing current of wire drawing is normal, especially when it is just started, pay special attention to the change of annealing current, and adjust the size of annealing current according to the change of wire speed, so as to make the annealing current gradually increase with the increase of wire speed and ensure the normal operation of the equipment.
I believe that as long as the above points are controlled in the actual production, the quality and production efficiency of copper wire drawing products will be improved to varying degrees, so as to provide a strong production guarantee for the next process better and faster.
Technical Parameters
| Item | DL-400/11 | |||||
| Input wire diameter | 8.0 mm | |||||
| Output wire diameter | 1.6 - 4.0 mm | |||||
| Max blocks | 11 | |||||
| Max running speed | 20 m/s | |||||
| Main motor power | 132 kw AC | |||||
| Drop coiler wheel size | 800mm / 680mm | |||||
| Maximum drop weight |
800mm 2500KG / 680mm 2000KG |
|||||
| Power of motor for drop coiler |
15kW (AC) |
|||||
| Control mode |
PLC control |
|||||
| Bearing |
NSK, SKF |
|||||
| Power supply |
400V-480V AC 50/60HZ |
|||||
Download Center
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
