DONGGUAN WIREMAC MACHINERY EQPT. CO., LTD. andy@wiremac.com 86-0769-82706004
Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: RL8000G
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 30-60 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set/Month
Casting Rod Diameter: |
8 - 20 MM |
Casting Rod Heads: |
16 Rods |
Furnace Speed: |
0 ~ 3000 Mm/min |
Brass Melting Rate: |
1050 Kg Per Hour |
Place Of Origin: |
Dongguan, China |
Quality: |
First Class |
Voltage Supply: |
380 To 480V, 3-Phase |
Warranty: |
1 Year |
Casting Rod Diameter: |
8 - 20 MM |
Casting Rod Heads: |
16 Rods |
Furnace Speed: |
0 ~ 3000 Mm/min |
Brass Melting Rate: |
1050 Kg Per Hour |
Place Of Origin: |
Dongguan, China |
Quality: |
First Class |
Voltage Supply: |
380 To 480V, 3-Phase |
Warranty: |
1 Year |
Copper Wire Scrap Continuous Casting Equipment With Annual 8000 Tons
Introduction
Cooling system
The water inlet pipeline of the cooling water system is equipped with a pressure transmitter to monitor and display the pressure and flow to ensure that the cooling water path is unobstructed. The outlet of each cooling water branch is concentrated to the detection water tank. The water tank is equipped with each return water temperature display and monitoring, and each return water is equipped with flow monitoring alarm
The inlet water flow of the crystallizer is controlled by monitoring the inlet and outlet water temperature difference of each crystallizer, and the outlet water temperature of the crystallizer is displayed on the temperature monitoring cabinet. At the same time, it must meet the requirements of mold temperature control.
The cooling water distributor distributes the cooling water to each crystallizer of the inductor of the power frequency induction furnace. The device is equipped with electric contact pressure gauge, temperature sensor and digital display. The supplier shall provide water pressure and water temperature alarm functions. All branches are made of pressure resistant steel pipes and supporting pressure resistant pipe joints to ensure the safety of pipeline pressure and no leakage.
Technical Parameters
| Item | Specs | ||||||
| Yearly capacity | 8000 MT | ||||||
| Casting copper rod | 8 mm to 20 mm | ||||||
| Upward drawing speed | 0 ~ 3000 mm per min | ||||||
| Structure of induction furnace body | Furnace body + furnace frame + inductor integrated combined furnace | ||||||
| Density |
(Copper) ~ 8.9 kg/dm3 |
||||||
| Furnace melting temperature | 1400 ℃ | ||||||
| Insulation casting temperature | 1150 ℃ ± 5 ℃ | ||||||
| Annual working time | 7920 hours | ||||||
| Weight of single disc |
≤ 4T |
||||||
| Required Charcoal |
≤ 7kg |
||||||
| Equipment dimension | L32000 x W6000 x H8000 mm | ||||||
Process Flow
Cathode copper plate → melting furnace → transition bin → holding furnace → continuous caster (crystallization molding) casting rod → take-up machine → sale or deep processing
Cathode copper is directly added into the melting furnace of QLW combined furnace and melted into copper liquid after power frequency induction. After melting, the copper liquid will automatically and smoothly overflow into the intermediate holding furnace through the transition bin, and the copper liquid has a stable reduction process through charcoal covered on the surface. After reduction, the copper liquid will quickly crystallize into a casting rod through the crystallizer in the continuous caster in the holding furnace, The casting rod is pulled upward through two pairs of traction rollers in the continuous caster. After being pulled out from the traction mechanism of the continuous caster, the casting rod is introduced into the take-up machine through the guide wheel frame and take-up limit device.
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.

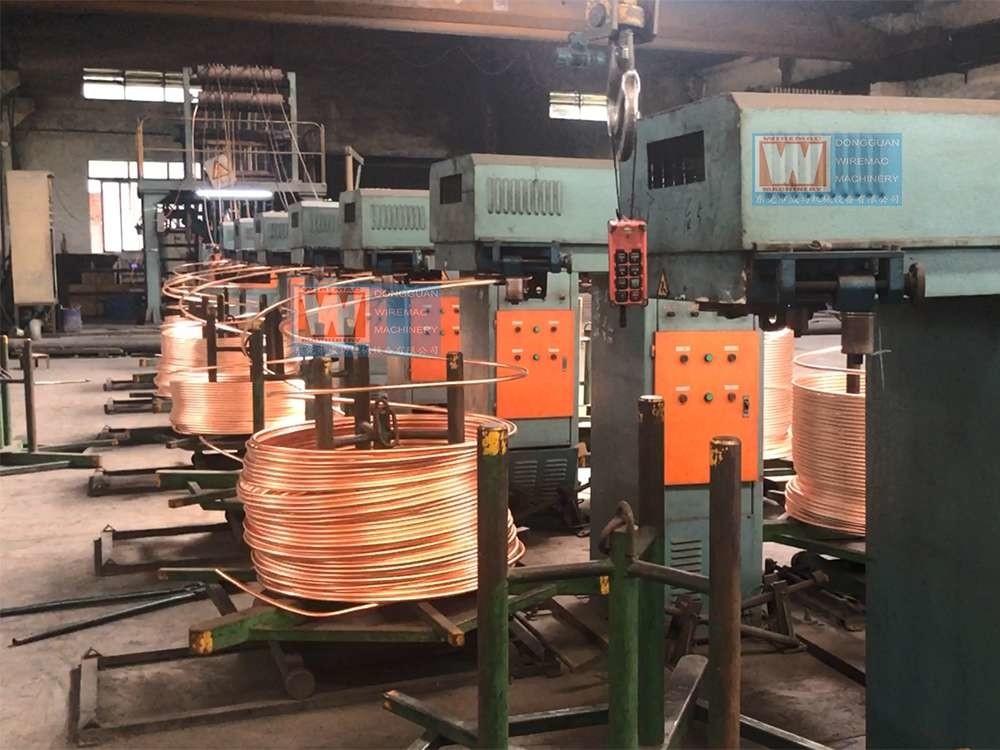

Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
