Cathode Copper Rod Casting Machine , 20 Heads Copper Rod Making Equipment

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: RL8000C

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 30-60 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5 Set/Month

Get Best Price
Product Details
High Light:

Brass Copper Rod Casting Machine

,

16 Rods Copper Rod Casting Machine

,

50Hz Induction Melting Equipment

Annual Output:
8000T
Bronze Bar Diameter:
8 MM - 20 MM
Induction Speed:
0 ~ 3000 MM Per Min
Melting Rate:
1050 Kg Per Hour
Casting Rod Heads:
16 Rods
Annual Working Time:
7920H
Voltage Supply:
380 To 480V, 50Hz
Warranty:
One Year
Annual Output:
8000T
Bronze Bar Diameter:
8 MM - 20 MM
Induction Speed:
0 ~ 3000 MM Per Min
Melting Rate:
1050 Kg Per Hour
Casting Rod Heads:
16 Rods
Annual Working Time:
7920H
Voltage Supply:
380 To 480V, 50Hz
Warranty:
One Year
Product Description

Cathode Copper Rod Casting Machine , 20 Heads Copper Rod Making Equipment



Introduction



Structure composition:

Power frequency inductor is mainly composed of furnace body, furnace frame and inductor.



The shell of the furnace body is a steel structure, and the interior is made of refractory bricks, thermal insulation bricks, siliceous ramming materials and thermal insulation materials; The furnace frame supports the whole furnace and is fixed on the floor foundation through anchor bolts; The inductor is composed of shell, coil, water jacket, mouth iron core and melting ditch. The high-voltage side (primary) of the inductor is composed of coil.



The melting inductor adopts a 300kW three-phase balanced autotransformer, the voltage can be adjusted from 90 to 380V, and the 9-gear contact type step-by-step electric voltage regulation; The inductor of the holding furnace adopts a 75kW three-phase balanced autotransformer, the voltage can be adjusted from 90V to 380V, and the PLC program control has automatic voltage regulation; The low-voltage side (secondary) of the inductor is composed of a short-circuit coil molten groove. After power on, under the action of the electromagnetic inductor, a large current and low voltage are generated in the molten groove to melt and melt the added electrolytic copper; Qlw furnace is composed of two inductors, one is a melting inductor and the other is a thermal insulation inductor.



A group of 300kW "W" integrated melting ditch is selected as the melting inductor. The "W" inductor has the characteristics of high melting rate and low power consumption. A 75kW "O" type melting ditch is selected as the thermal insulation inductor. The thermal insulation material of furnace shell and inductor shell adopts nano thermal insulation material, which can reduce the surface temperature of furnace shell. The water jacket and coil crystallizer are cooled by water, and the cooling water is recycled, which is provided by the water pump of cooling pool.



Technical Parameters



Item Specs
Annual output capacity 8000 Metric tons
Diameter of copper rod 8 to  20 mm
Speed of up drawing 0 to 3000 mm/min
Copper melting rate

1.05 ton/hour

Equipment power 410 kw to 430 kw
Copper density

~ 8.9 kg/dm3

Soft state resistivity ≤ 0.01724 Ω·mm2/M
Upward traction frequency 0 ~ 800 times/min
Equipment electricity ≤ 320 Kwh/T (smelting and thermal insulation)
 Working time per year 7920 hours
Installed capacity 620 KVA
Charcoal required

≤ 7kg (graphite flake ≤ 2kg for holding furnace)

Equipment size L32000 mm x W6000 mm x H8000 mm



Process Flow



Cathode copper plate → melting furnace → transition bin → holding furnace → continuous caster (crystallization molding) casting rod → take-up machine → sale or deep processing

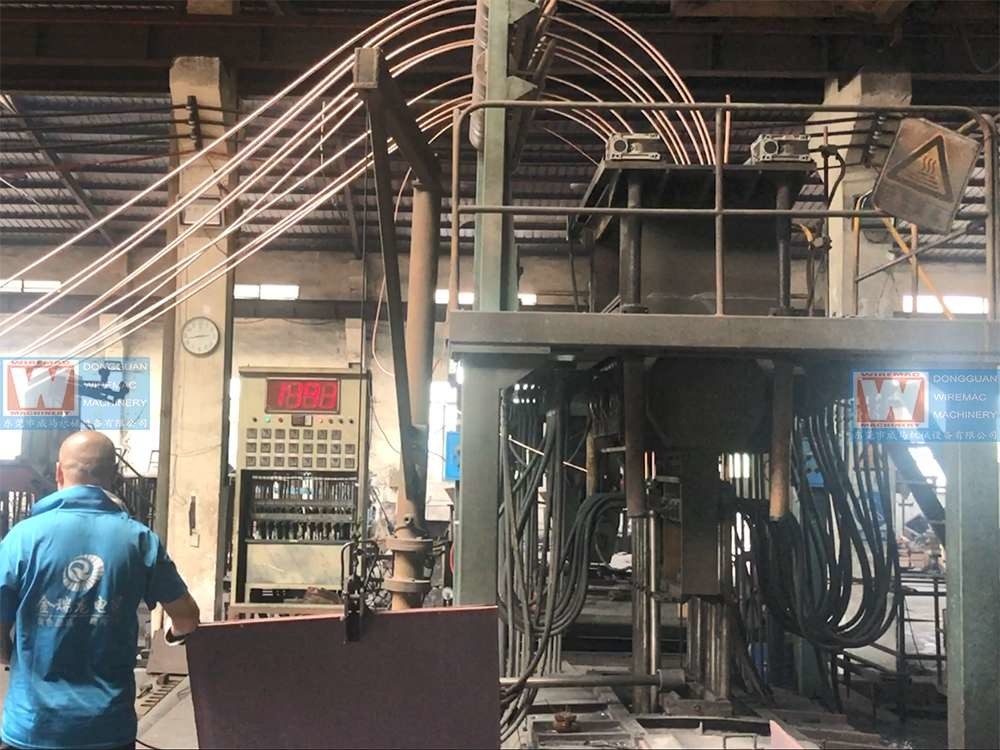

Cathode copper is directly added into the melting furnace of QLW combined furnace and melted into copper liquid after power frequency induction. After melting, the copper liquid will automatically and smoothly overflow into the intermediate holding furnace through the transition bin, and the copper liquid has a stable reduction process through charcoal covered on the surface. After reduction, the copper liquid will quickly crystallize into a casting rod through the crystallizer in the continuous caster in the holding furnace, The casting rod is pulled upward through two pairs of traction rollers in the continuous caster. After being pulled out from the traction mechanism of the continuous caster, the casting rod is introduced into the take-up machine through the guide wheel frame and take-up limit device.



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Cathode Copper Rod Casting Machine , 20 Heads Copper Rod Making Equipment 0



Our Workshop



Cathode Copper Rod Casting Machine , 20 Heads Copper Rod Making Equipment 1Cathode Copper Rod Casting Machine , 20 Heads Copper Rod Making Equipment 2Cathode Copper Rod Casting Machine , 20 Heads Copper Rod Making Equipment 3
