Ultra Fine Diamond Drawing Dies

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: WD0436

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 5-10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1500 PCS/Month

Get Best Price
Product Details
High Light:

Ultra Fine Diamond Drawing Dies


Polycrystalline Diamond Drawing Dies


0.056 Mm Polycrystalline Diamond Dies

0.056 Mm
1 Year
Europe, US Standard
Wire Drawing
0.056 Mm
1 Year
Europe, US Standard
Wire Drawing
Product Description

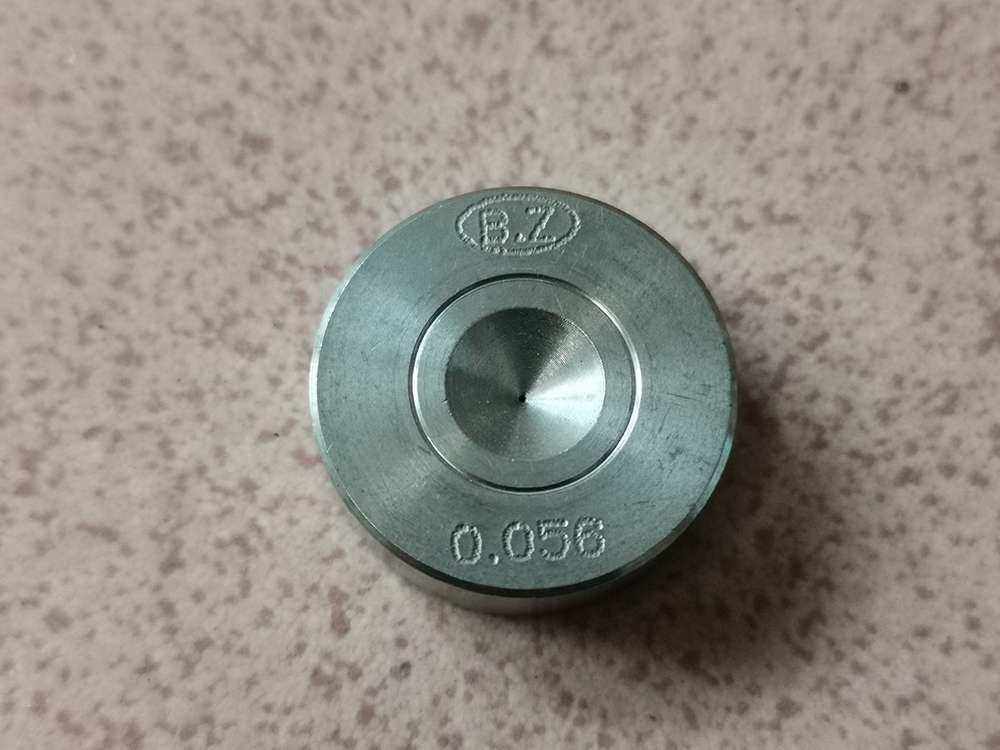

Durable 0.056 Mm Fine Wire Drawing Diamond Die




Although wire drawing dies can be used to process all kinds of steel, copper, tungsten, molybdenum and other metal and alloy materials, wire drawing dies of different materials have their own applicable processing range. When wire drawing dies of different materials process the same wire, their wear patterns and service life are very different. Therefore, reasonable selection of wire drawing die materials is the key to ensure successful application.


Drawing dies of different materials have their relatively reasonable processing objects. The rationality of drawing mainly refers to the matching of mechanical, physical and chemical properties of wire drawing die and wire rod in order to obtain the longest service life of the die. For example, when drawing copper wire with the same diameter, the service life of polycrystalline diamond die is 300 ~ 500 times that of cemented carbide die, 80 ~ 100 times that of nickel wire, 50 ~ 80 times that of cemented carbide die when drawing molybdenum wire, and 20 ~ 60 times that of cemented carbide die when drawing carbon steel.


Due to the lack of systematic research on the matching theory of drawing die and wire rod in China, it leads to blind selection and waste of resources. The friction and wear of wire drawing die is very complex, which is generally divided into damage and friction and wear. The damage of wire drawing die can be divided into ring damage, tensile damage, shear damage and support surface damage. Friction and wear can be divided into wear, friction and wear, corrosion wear, abrasion and wear caused by fine particles.


The different working conditions (wire material, wire drawing die material, lubricant, etc.) make the wear and damage of wire drawing die have its unique process. The relationship between the wear and failure of wire drawing die is interrelated in essence. The internal situation of the wire drawing die may be very subtle, and some factors may work at the same time. Their superposition is very complex and difficult to understand. It is possible that the role of one factor will mask the role of other factors.


The forms of bad and friction and wear may often be intertwined, which makes it more difficult to analyze the failure and wear mechanism of wire drawing die. But in general, the order of wear resistance of wire drawing dies of various materials from high to low is: diamond wire drawing die (without considering the anisotropy of natural diamond) - ceramic wire drawing die - cemented carbide die - obsolete alloy steel die.


Our Company


Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.


The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.


Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.


Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.


Ultra Fine Diamond Drawing Dies 0


Our Workshop


Ultra Fine Diamond Drawing Dies 1Ultra Fine Diamond Drawing Dies 2Ultra Fine Diamond Drawing Dies 3




1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.


2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.


4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.


5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.


12. Q: Can I use my own logo?
A: No problem, please inform us.
