Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: DT100-1625M
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 60-90 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Month
Inlet Wire Diameter: |
1.6 - 1.8 MM |
Outlet Wire Range: |
0.14 To 0.52 MM |
Machine Speed: |
Max 1800 M/min |
Install Capacity: |
320 KVA |
Quantity Of Dies: |
24 X 16 |
Drawing Wheel Diameter: |
100 Mm |
Machine Dimension: |
L22000 X W6000 X H4000 MM |
Machine Weight: |
20000 KGS |
Inlet Wire Diameter: |
1.6 - 1.8 MM |
Outlet Wire Range: |
0.14 To 0.52 MM |
Machine Speed: |
Max 1800 M/min |
Install Capacity: |
320 KVA |
Quantity Of Dies: |
24 X 16 |
Drawing Wheel Diameter: |
100 Mm |
Machine Dimension: |
L22000 X W6000 X H4000 MM |
Machine Weight: |
20000 KGS |
Wiremac 16 Wires Multi Drawing Machine For Making Wire And Cable
Introduction
A 16-wire drawing machine, also known as a multiwire drawing machine, offers several advantages over single-wire drawing machines. Here are some of the advantages of using a 16-wire drawing machine:
1) Increased Production Capacity: With 16 wires being drawn simultaneously, a 16-wire drawing machine can significantly increase the production capacity compared to a single-wire drawing machine. This allows for higher output and greater efficiency in wire production.
2) Reduced Production Time: Drawing multiple wires at once reduces the overall production time. Since all wires are processed simultaneously, the time required to achieve the desired wire diameter is significantly reduced, leading to faster production cycles.
3) Space Efficiency: A 16-wire drawing machine can process the same amount of wire as multiple single-wire drawing machines but takes up less floor space. This allows for optimal utilization of manufacturing space, especially in environments where space is limited.
4) Cost Savings: Consolidating wire drawing processes into a single 16-wire drawing machine can result in cost savings compared to operating multiple single-wire drawing machines. It reduces the need for additional equipment, maintenance, and operational costs associated with multiple machines.
5) Enhanced Process Control: Multiwire drawing machines typically have advanced control systems that allow for precise control over each wire's drawing parameters. This ensures uniformity in wire diameter and quality across all wires being drawn simultaneously.
6) Consistent Wire Quality: The simultaneous drawing of multiple wires in a 16-wire drawing machine helps maintain consistency in wire quality. The wires experience similar drawing conditions, resulting in uniform characteristics such as diameter, surface finish, and mechanical properties.
7) Versatility: A 16-wire drawing machine can handle a wide range of wire diameters simultaneously. This versatility makes it suitable for applications requiring different wire sizes, allowing for greater flexibility in meeting customer demands.
8) Reduced Labor Requirements: Operating a single 16-wire drawing machine requires fewer operators compared to running multiple single-wire drawing machines. This leads to reduced labor costs and allows personnel to focus on other value-added tasks.
9) Streamlined Production Flow: Consolidating the wire drawing process into a 16-wire drawing machine simplifies the production flow. It eliminates the need for transferring wires between different machines, reducing material handling and potential errors.
10) Improved Efficiency: The simultaneous drawing of multiple wires in a 16-wire drawing machine improves overall process efficiency. It maximizes the use of drawing dies, capstans, and other components, resulting in higher productivity and reduced downtime.
It's important to note that the specific advantages of a 16-wire drawing machine may vary depending on the application, wire diameter, and production requirements. Manufacturers and wire producers should evaluate their specific needs and consider the potential benefits of a 16-wire drawing machine for their operations.
Technical Parameters
| Item | Value | ||||||
| I/P diameter | 1.6 mm - 1.8 mm | ||||||
| O/P diameter | 0.14 mm - 0.52 mm | ||||||
| Equipment speed | Max 1800 m/min | ||||||
| Die No. | 24 x 16 | ||||||
| Die dimension | Φ25mm x 8 - 13mm (thickness) | ||||||
| Drawing wheel diameter | 100 mm | ||||||
| Take up spool capacity | Max 500 kgs | ||||||
| Annealing wheel diameter | 200 mm | ||||||
| Annealing current | 3800 A | ||||||
| Annealing voltage | DC 70V | ||||||
| Take-up motor power | 11kw AC motor | ||||||
| Take-up spool size | 500 / 630 mm | ||||||
| Power supply | 400V, 50Hz or 60Hz | ||||||

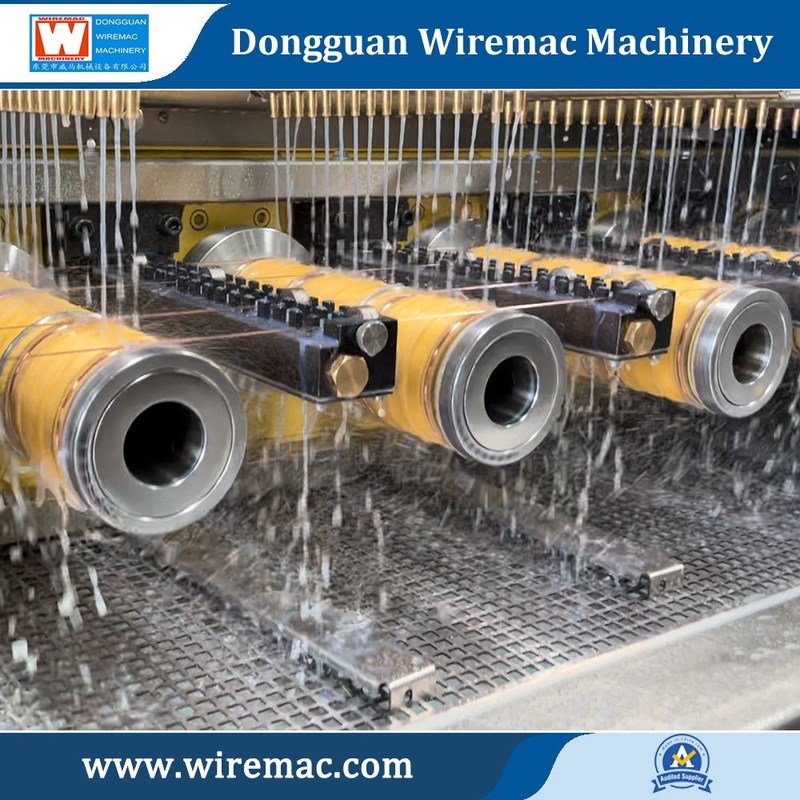

Machine Photo
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
