Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: /
Model Number: /
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD900-1800 Unit Price
Packaging Details: /
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 45 sets per month
Wire Diameter: |
≤Φ25mm |
Weight: |
70KGS. |
Temperature Control Table: |
80 °C-120 °C. |
Power: |
Adpots 120W Reduction Gear Motor |
Dimension: |
L1200mm*H410mm*W1100mm |
Center Height(mm): |
1000 |
Wire Diameter: |
≤Φ25mm |
Weight: |
70KGS. |
Temperature Control Table: |
80 °C-120 °C. |
Power: |
Adpots 120W Reduction Gear Motor |
Dimension: |
L1200mm*H410mm*W1100mm |
Center Height(mm): |
1000 |

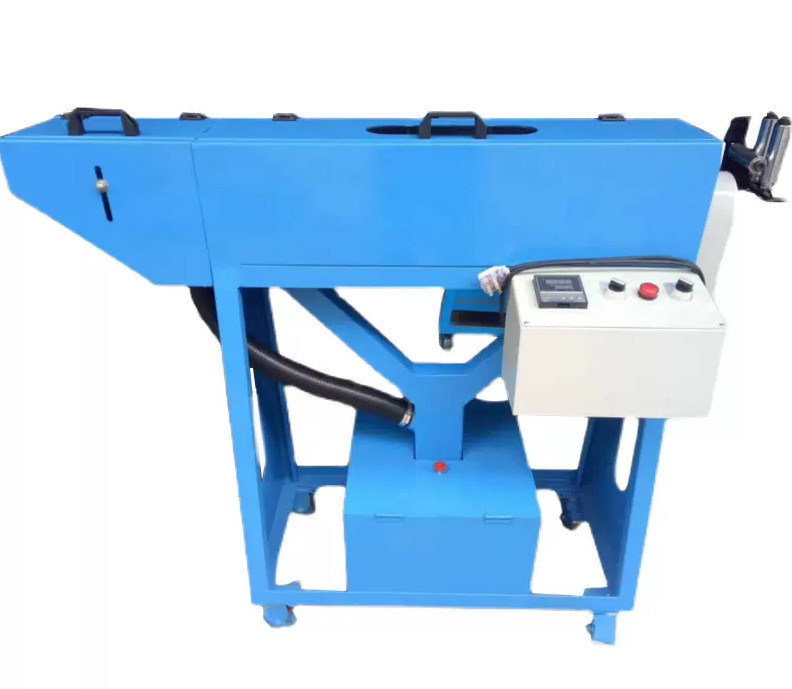

High peformants XLPE cable powder machine of extrusion line cable making machines talcum powder core wire extruder
Application
Before extruding the wire sheath, the surface of the wire is covered with the talc powder to improve the peeling.
Speficiation
1, Wire diameter: ≤Φ25mm
2, Power:Adpots 120W reduction gear motor
3, Dimension:L1200mm*H410mm*W1100mm
4, Weight:70KG
5, Center height(mm): 1000
6, Power supply:Single phase 220V
7, Temperature range: 80-120 °C
Feature
1.It is fully enclosed, no dust is flying, and there is also a dust-falling diversion plastic tube, which enters the dust collecting box to collect the dust,the collected dust can be reuse
3.Machine feet have four wheels for easy movement
Contact us for more details,pics and videos if you are interested in.
