DONGGUAN WIREMAC MACHINERY EQPT. CO., LTD. andy@wiremac.com 86-0769-82706004
Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS
Model Number: ZDLT350
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Month
Input Diameter: |
3.0 / 3.5 MM |
Output Diameter: |
1.0－2.76 MM |
Dies: |
9 PCS |
Max Speed: |
1200 M/MIN |
Mechanical Elongation Rate: |
25% , 18.7% |
Main Motor Power: |
55 KW (AC) |
Reel Size: |
500 - 630 MM |
Machine Size: |
L8500 X W3000 X H3500 MM |
Machine Weight: |
7500 KGS |
Warranty: |
1 Year |
Quality: |
Europe, US Standard |
Required Voltage: |
380V AC 50Hz |
Input Diameter: |
3.0 / 3.5 MM |
Output Diameter: |
1.0－2.76 MM |
Dies: |
9 PCS |
Max Speed: |
1200 M/MIN |
Mechanical Elongation Rate: |
25% , 18.7% |
Main Motor Power: |
55 KW (AC) |
Reel Size: |
500 - 630 MM |
Machine Size: |
L8500 X W3000 X H3500 MM |
Machine Weight: |
7500 KGS |
Warranty: |
1 Year |
Quality: |
Europe, US Standard |
Required Voltage: |
380V AC 50Hz |

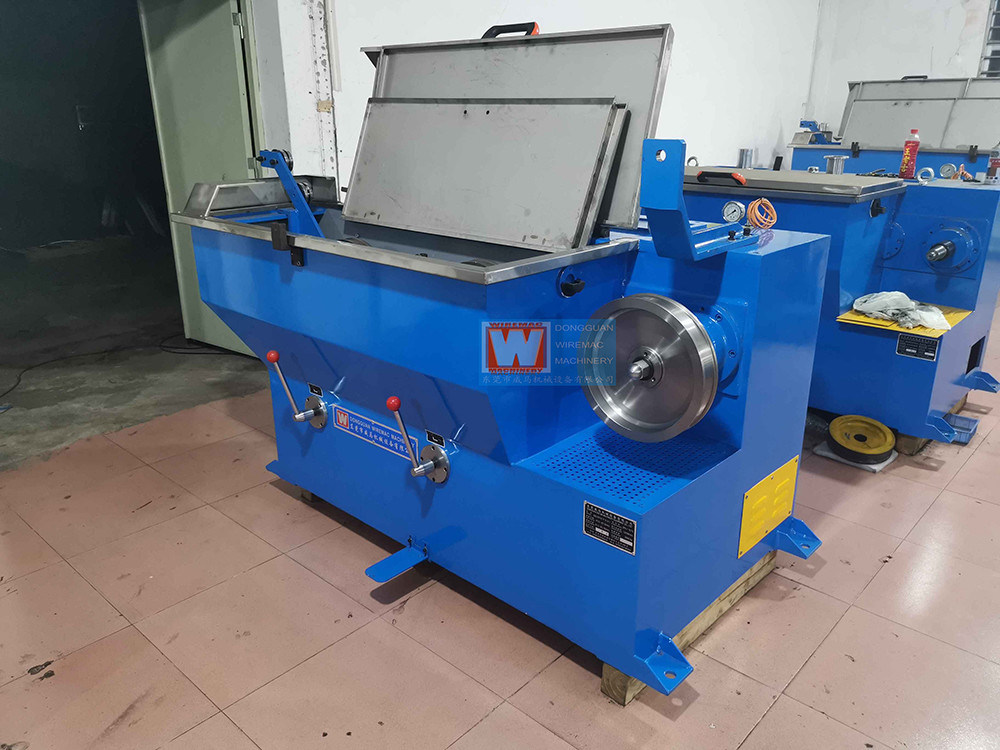

High Output R.B.D Wire Drawing Machine 1.0 To 2.76 Mm Straight Line
Features
1) The main engine is mainly composed of drawing liquid cooling circulating tank, transmission gearbox and rotating lubrication system.
2) Two die piercing inching switches are used for die piercing points, and anti-reversal devices are set.
3) The distance between stay wire drum, die base and gear box shall be consistent, which is the most advanced structure in the world.
4) Drum rim adopts steel wheel and is sprayed with tungsten carbide to ensure the service life of drum rim.
5) The gearbox lubrication system uses a 2.2kW standby motor oil pump with heat exchanger to lubricate and cool all gears and bearings.
Technical Parameters
| Machine spec | ZDL350 | ||||||
| Max input diameter | 3.0 mm or 3.5 mm | ||||||
| Output diameter range | 1.0 mm to 2.76 mm | ||||||
| Max production speed | 1200 m/min | ||||||
| Reel dimension | 500 - 630 mm | ||||||
| Die number | 9 sets | ||||||
| Max capstan diameter | 350 mm | ||||||
| Drive | Gear drive | ||||||
| Elongation rate | 25% + 18.7% | ||||||
| Brake | Magnetic brake | ||||||
| Electric control type | PID dual inverter | ||||||
| Take up capacity | 200 KGS | ||||||
| Main motor power | 55 kw | ||||||
| Power supply | 380V - 480 V, 50Hz or 60Hz | ||||||
| Machine dimension | L8500 x W3000 x H3500 mm | ||||||
| Machine weight | 7500 kg | ||||||
Download Center
Intermediate RBD Wire Drawing With Single Spool Ta...
Note: Please click above link to download our detailed machine technical specifications.
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
